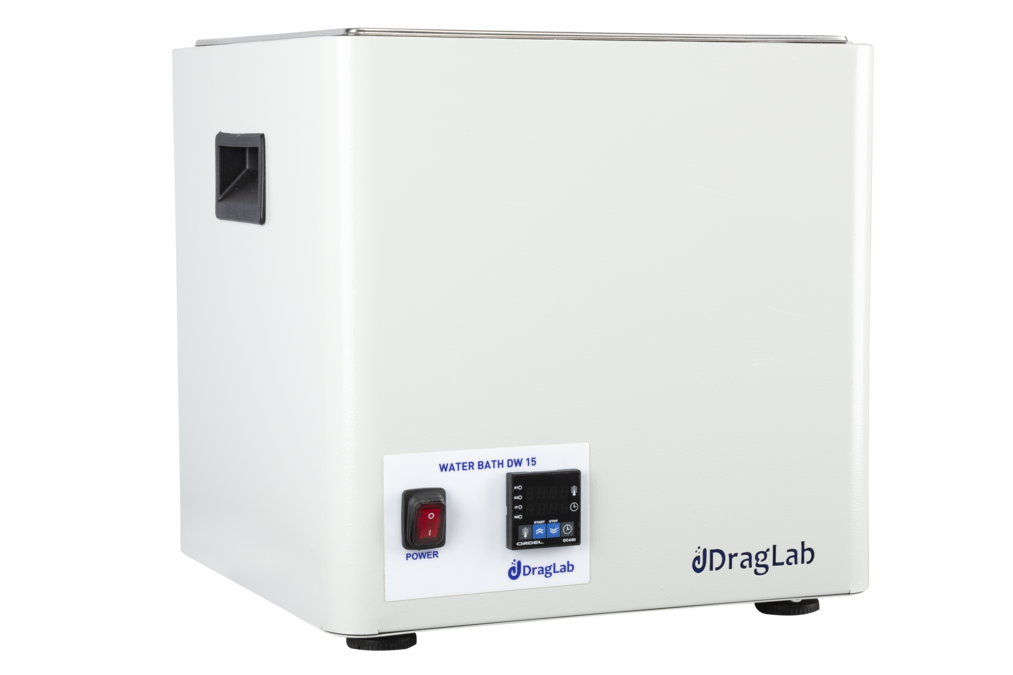

Water Bath - DW 10
Laboratory Water Bath
The Drag Lab water bath is an ideal solution for various laboratory applications including biotechnology, chemistry, and environmental sciences. It offers precise PID digital temperature control ranging ambient from 5ºC to 100ºC. DragLab water bath model DW 06 is a 6 litter useful tank volume and comes with an inte grated drain faucet and adjustable feet, ergonomic grip making it easy to handle and safe to use.
DragLab Water Bath offers unique advantages

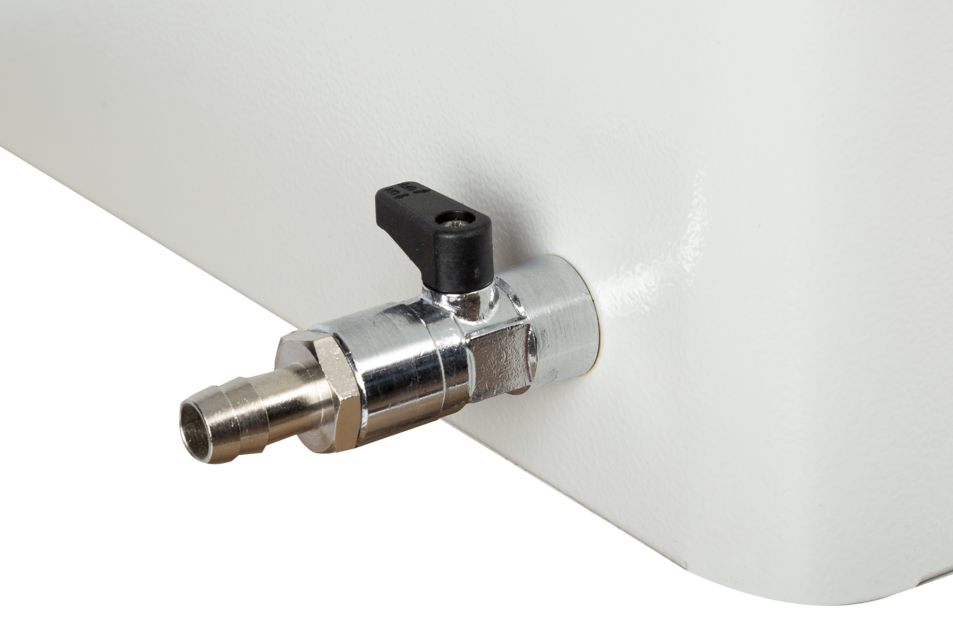

- The integrated drain faucet allows for easy and convenient emptying of the tank when needed.

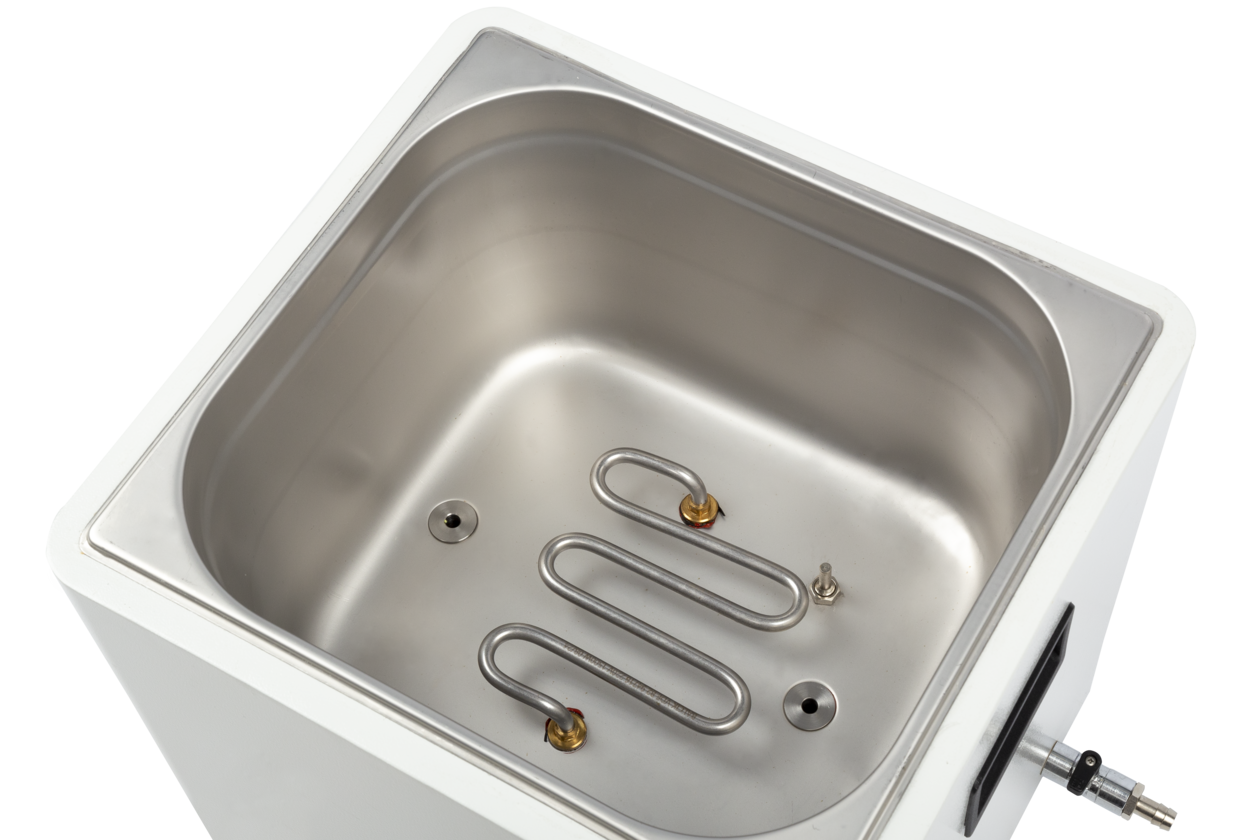

- Perforated bottom plate to prevent direct contact with heating elements.
- PID digital microprocessor controller ensures accurate temperature settings from +5.00ºC to 100.00ºC, providing reliable performance for all your experiments.
- Temperature Accuracy 0.1ºC
- Digital timer from 1 min. up to 9999 min. with a delay function.

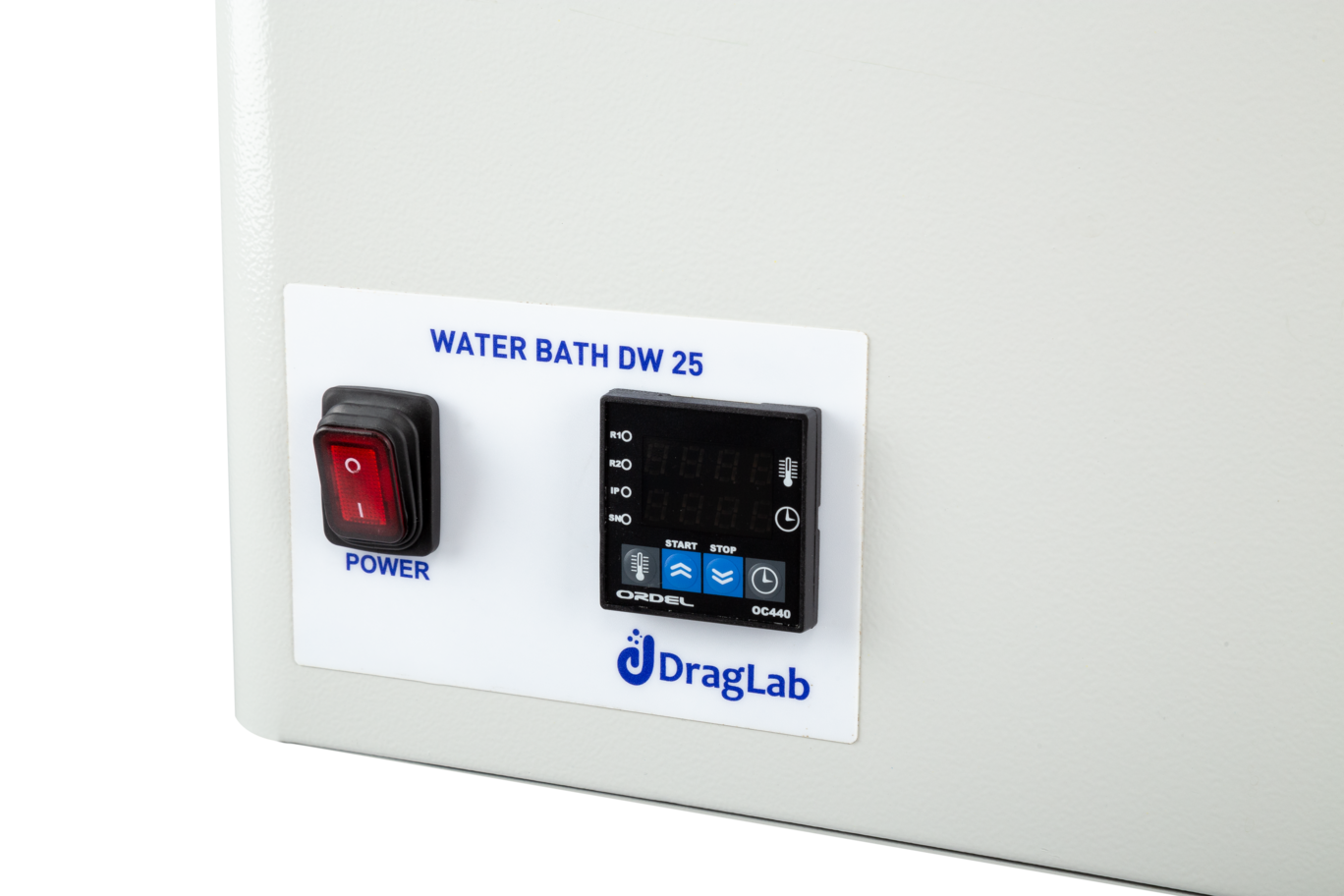

- Easy operation with intuitive controls and a user friendly interface.
- The mains switch is protected against spray water, ensuring safe operation in potentially wet conditions.
- Integrated protection prevents operation when dry conditions are detected.
- Ergonomic side grips ensure easy transportation.
- adjustable feet provide stability.
- Energy-saving features ensure efficient operation and reduced power consumption.
- Easily accessed tank for effortless cleaning and maintenance.
- Tank material made of stainless steel AISI 304
- Heating element made of stainless steel AISI 304.
- Housing material made of galvanized steel, electrostatically powder-coated.
- Temperature sensor 1 Pt100 sensor DIN class A .
- stainless steel cover reduces heat loss and ensures a uniform temperature .
Dimensions
Technical specifications
| Temperature | |
|---|---|
| Setting temperature range | +5.00 ºC to 100.00 ºC |
| Setting accuracy Temperature | e 0.1 ºC |
| Temperature unit | Easy to choose Celsius or Fahrenheit |
| Temperature sensor | 1 Pt100 sensor DIN class A in 2-wire-circuit. |
| Control technology | |
|---|---|
| Controller | PID microprocessor digital controller |
| Display | 4 digits, 7 segment digital display |
| Calibration | 1 point calibration. |
| Timer | Digital timer from 1 min. up to 9999 min. with delay function |
| Standard equipment | |
|---|---|
| Heating element | Heating element made of stainless steel (material no.: EN 1.4301). |
| Drain system | Integrated with drain tap - easy to empty |
| External material | Housing material made of galvanized steel, electrostatically powder-coated |
| Circulation | Built in circulating pump to enhance performance and temperature homogeneous |
| Main switch | The mains switch with led light and protected against spray water |
| cover | stainless steel cover reduces heat loss and ensures a uniform temperature |
| Interior | |
|---|---|
| Internal material | Internal tank made of stainless steel AISI 304 |
| Internal dimensions | 300 W X 240 D X 200 H (mm) |
| Plate | The perforated bottom plate is included. |
| Volume | 10 litter |
| Liquid level minimum | 40 mm |
| Liquid level maximum | 165 mm |
| Safety | |
|---|---|
| Alarm | Adjustable limit on the independent temperature safety device |
| Auto diagnostic system | microprocessor PID-temperature controller with integrated autodiagnostic |
| Class | Class I in accordance with the EU directive MDD 93/42/EEC |
| Protection Class | IP20 according to EN 60529 |
| Standards | EN 61010-1 and EN 61010-2-010 in accordance with EU directive 2014/35/EU EN 61326:2021 in accordance with EU directive 2014/30/EU |
| Electrical data | |
|---|---|
| Voltage | 230 volts, 50/60Hz |
| Watt | 1000 watts |
| Shipping information | |
|---|---|
| Customs tariff number | 8419 8998 |
| Dimensions approx incl. carton | 430 X 450 X 340 (mm) |
| Net weight | 12 Kg |
| Gross weight carton | 14 Kg |
Order information
| Description | Model | Article number |
|---|---|---|
| Water Bath volume 10 L, 220V/50-60 Hz | DW 10 | 2010.000 |
Options
| Description | Model | Article number |
|---|---|---|
| Water Bath volume 6 L, 220V/50-60 Hz | DW 06 | 2006.000 |
| Water Bath volume 10 L, 220V/50-60 Hz | DW 10 | 2010.000 |
| Water Bath volume 25 L, 220V/50-60 Hz | DW 25 | 2025.000 |
| Water Bath volume 35 L, 220V/50-60 Hz | DW 35 | 2035.000 |
| Water Bath volume 50 L, 220V/50-60 Hz | DW 50 | 2050.000 |
| Water Bath volume 15 L, 220V/50-60 Hz | DW15 | 2015.000 |
