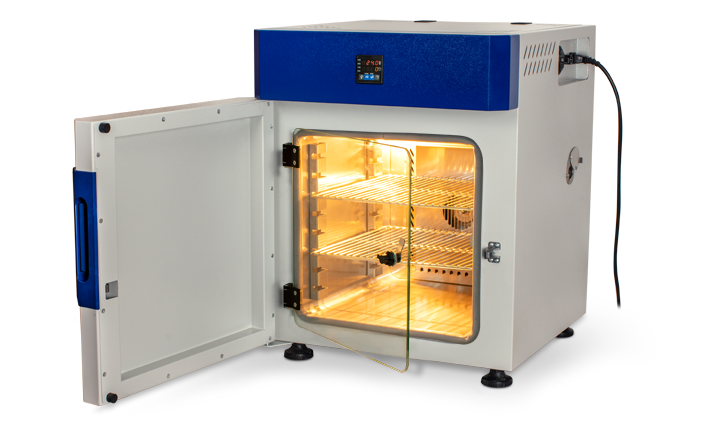

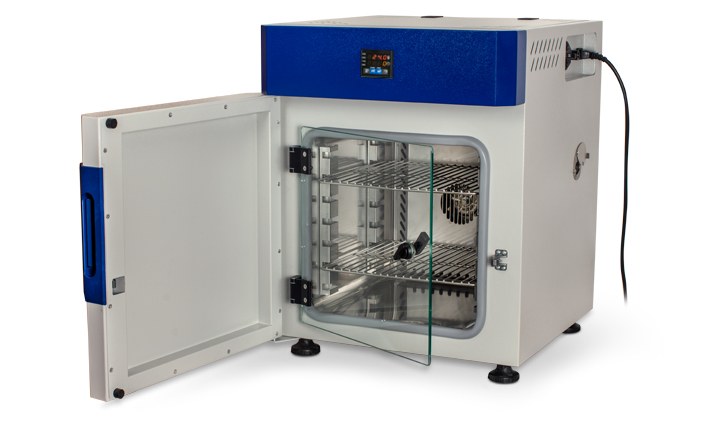

Incubator DI 30 - Digital Display

Standard Incubator - Digital Display

The heating of this incubator is a forced air circulation; it is the ideal solution when it comes to meeting growth and incubation requirements for research, pharmaceutics, medicine and food chemistry.
Thanks to their exceptional efficiency and perfect temperature, this new generation of incubators has real appeal.



DragLab Incubator offers unique advantages

• Air forced convection
• 7 segment digital display
• Programmable PID microprocessor control system.
• Programmable temperature and timer function
• Ambient temperature + 20 °C to 100 °C
• Temperature homogeneity and stability accordance to DIN 12880.
• automatic thermostatic protection
• automatic adjustable ventilation
• 2 chrome-plated racks
• functional stainless steel AISI 304 interior chamber
• 2 years guarantee worldwide

Dimensions

Technical specifications

Temperature
Working temperature range min. +20°C ambient up to +100°C
Temperature fluctuation 0.1°C
Temperature accuracy ± 0.3 % (Over full scale)
Temperature unit easy to choose Celsius or Fahrenheit
Temperature sensor 1 Pt100 sensor DIN class A in 2-wire-circuit
Control technology
Language setting English as default language
Control Adaptive multifunctional digital PID-microprocessor controller
Display 4 digits, 7 segment digital display
Timer Digital backward counter to target time setting
Timer control Adjustable from 1 minute to 99:59 hour or continues
Delay timer Programmable time delay function
Function set point wait The timer does not start until the set temperature reached to the set point
Adjustable parameter Temperature and time, automatic fan adjustable
Standard equipment
External Door External steel door with compression door lock
Internal door Inner door made of tempered safety glass
Calibration certificate calibration certificate at +100°C (optional)
Interior easy-to-clean interior made of stainless steel AISI 304 on all sides
Gasket synthetic rubbers gasket
Housing Electrostatic powder coated galvanized steel
Insulation Fully isolated chamber by Rockwool covered by aluminum sheet to ensure high temperature stability.
Emergency knob Manual knob in case of emergency
External dimensions 480 (W) X 530 (D) X 570 (H) mm
Shelves 2-shelves chrome plated
Interior
Internal dimensions 310(W) X 330(D) X 310(H) mm
Chamber Easy to clean Stainless steel material no.: EN 1.4301 (AISI 304)
Useful volume 31 litter
Standard shelves 2-shelves chrome plated
Max. number of shelves 5
Permitted load 75 Kg
Load per shelve 15 KG
Ventilation
Fan forced air circulation by quiet air turbine automatically adjustable
Safety
Auto diagnostic system Audible alarm for fault analysis
Alarm audible, can be switched off, adjustable limit on the independent temperature safety device
Standards integrated independent temperature safety device with visual alarm accordance DIN 12880
EN 61010-1, EN 61010-2-010 in accordance EU directive 2014/35/EU
DIN EN 61326-1:213, EN 61326-1 in accordance EU directive 2014/30/EU
Class class I in accordance with the EU directive MDD 93/42/EEC
Protection Class IP20 according to EN 60529
working conditions
Installation • The distance between the wall and the rear of the appliance must be at least 15 cm.
The sides distance must be not less than 5 cm.
the distance from the ceiling must not be less than 20 cm.
Temperature +5 °C to +55 °C
Humidity Max. 80% rh
Electrical data
Voltage 230 volts , 50/60Hz
Watt 1500 watt
* Other voltages available on request
Shipping information
Customs tariff number 8419 8998
Dimensions approx incl. carton 570 (W) X 610 (D) X 680 (H) mm
Net weight 35 Kg
Gross weight carton 40 Kg

Order information

Description Model Article number
Incubator 31 Lt - Digital Display - AMBIENT TEMPERATURE: +20 ºC to 100 ºC - 230V, 50/60Hz DI 30 1032.300
* Other voltages available on request

Options

Description Article number
Digital display touch screen 2.8 inch 100
Digital display touch screen 4.3 inch 200
Analogue display 300
Wire rack 400
Calibration certificate at 37 ˚C 500
English language for software 000
German language for software 001
French language for software 002
Turkish language for software 003
